Make-a-Ring

A ring studio in the browser for people who aren't jewellers: pick or draw a pattern, see it on a hand, and leave with a print-ready file.

Role
Hackathon entry · co-built with Franciszek Kossut
Year
2026
Stack
Preact, htm, three.js, No build step, Deployxa
Status
Shipped Live; hackathon results pending
The Make-a-Ring landing page, with the words MAKE A RING in large type behind a live 3D gold ring and a title block listing its layout, material, size and estimated price.
The landing page, with a live 3D ring and its spec sheet

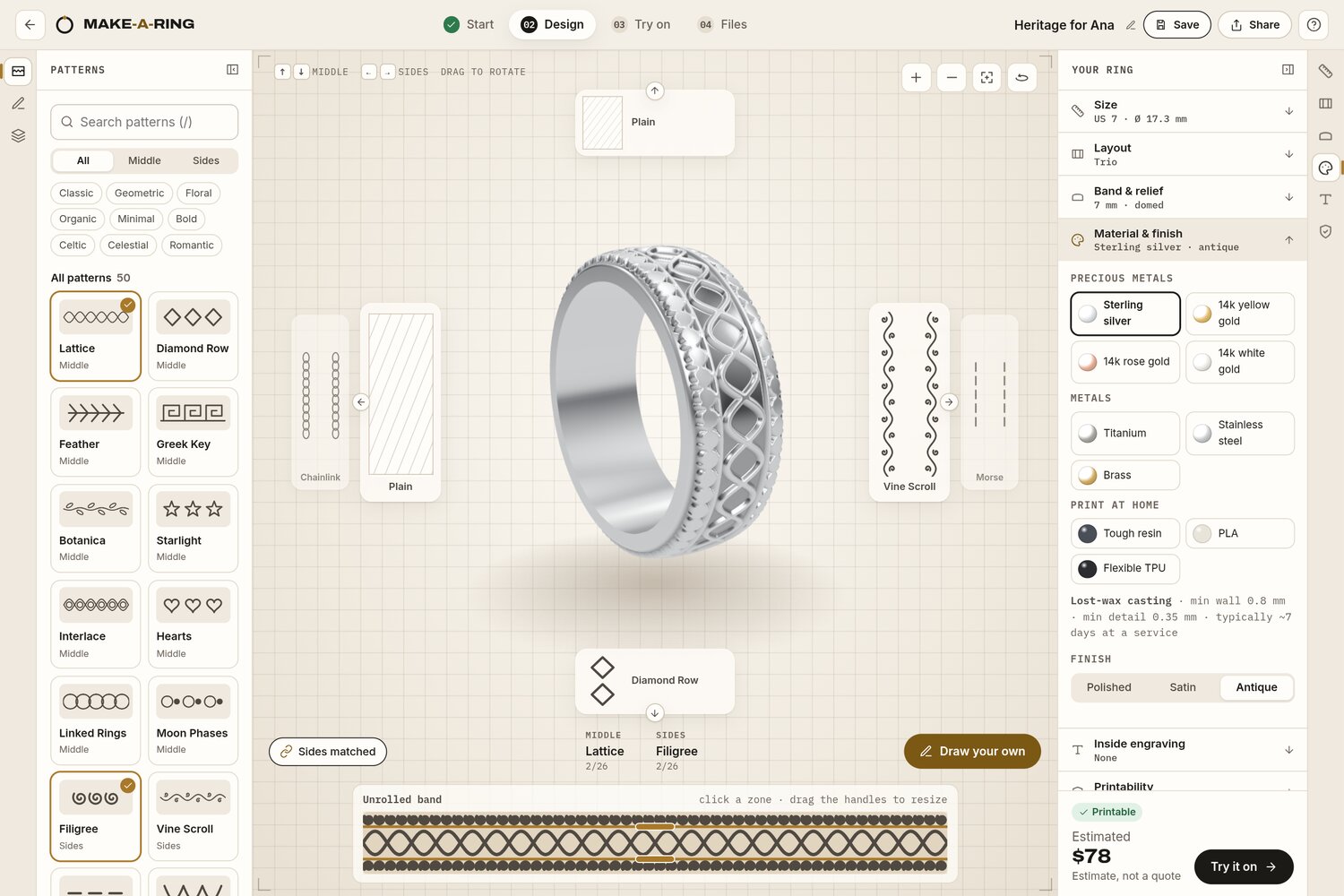

The Make-a-Ring studio, with a silver ring at the centre of a cross carousel of pattern cards, the pattern library on the left, the ring's properties on the right and the unrolled band underneath.
The studio: up and down change the middle pattern, left and right the sides

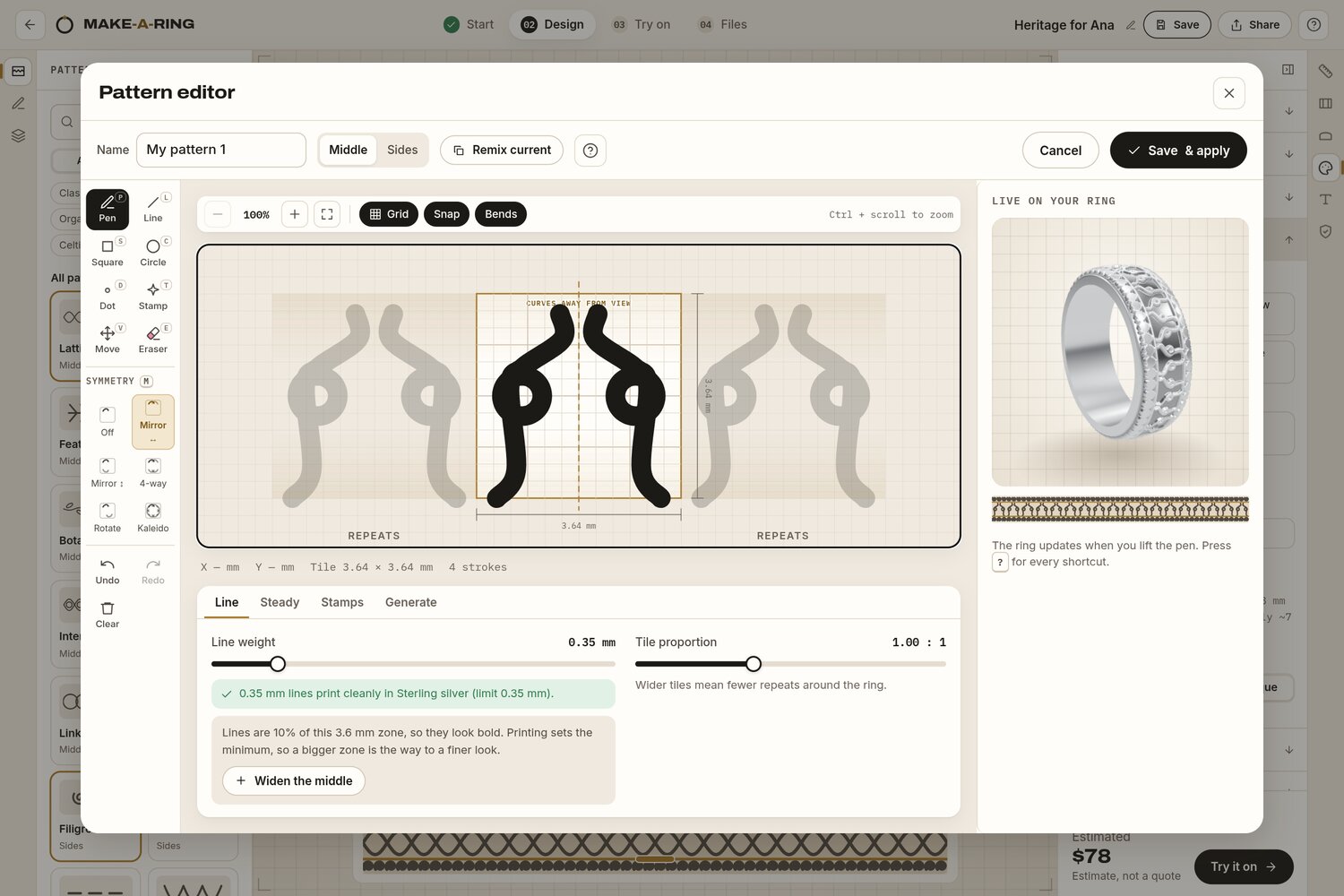

The pattern editor with one tile drawn under mirror symmetry, its repeats shown faded on each side, a 0.35 mm line weight checked against sterling silver, and the ring updating on the right.
The pattern editor, where one mirrored tile repeats around the band

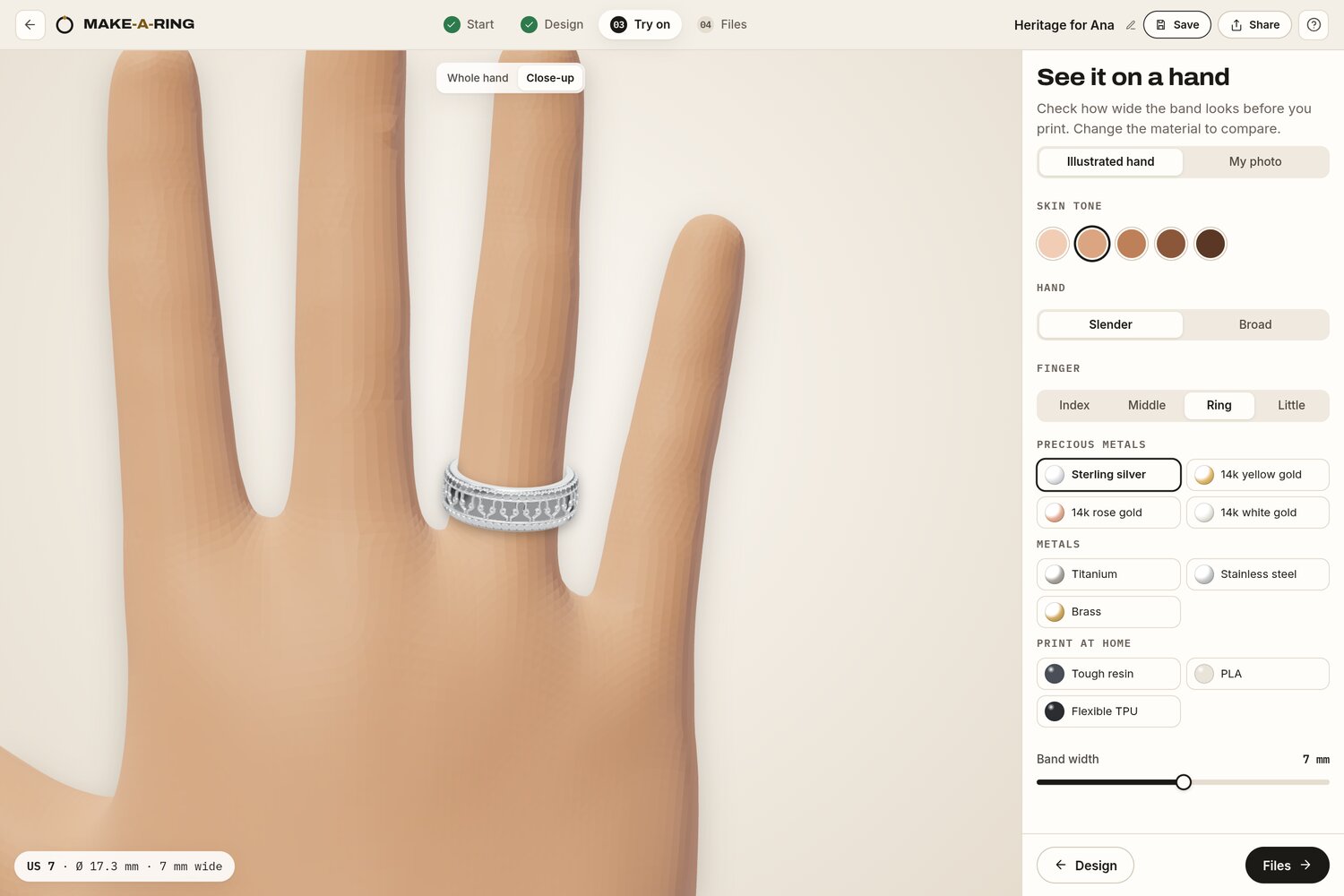

The try-on screen, with the silver ring on the ring finger of a 3D hand and controls for skin tone, hand build, finger and material.
Try-on on a 3D hand, with the ring at true scale

© 2026 Franciszek Kossut and Javier Arévalo

Problem

Custom rings are designed in CAD tools made for professionals, or picked from a short list of presets. Someone with an idea for a ring has no way to try it, see it at their real size, or hand a maker a file they can use.

Franciszek Kossut and I built Make-a-Ring for HyperBloom October 2026, a UI/UX and web design hackathon: a ring studio for people who aren’t jewellers, where the whole journey from idea to file happens in the browser.

Solution

  • A cross carousel around a live 3D ring. Up and down change the middle pattern, left and right the sides, and the arrow keys do the same. The unrolled band underneath shows the whole design flat.
  • Draw one tile. The pattern editor draws a single tile with mirror, rotate or kaleidoscope symmetry, and it repeats seamlessly around the band. Line weights are checked against the material while you draw.
  • Try it on. A 3D hand, or a photo of your own hand, uploaded or taken with the camera. The ring is drawn at true scale.
  • Printability checks per material. Wall thickness, detail size and the seamless wrap are checked against each material’s real limits, with one-click fixes.
  • Real files. The STL and OBJ downloads are real meshes, ready for a printer or a caster.
  • No build step. Preact with htm and three.js load through an import map, so the repository is the site: it deploys as static files on Deployxa.

Result

The studio is live at make-a-ring.deployxa.online and was submitted to HyperBloom. The results are still pending.

Accessibility was measured rather than assumed:

  • Everything works by keyboard: the arrows drive the carousel, the size drawing is a slider, and the pattern editor draws with arrows and Enter.
  • Pattern changes and modes are announced to screen readers.
  • prefers-reduced-motion turns off transitions, the turntable and the animated tours.
  • axe-core 4.10 reports 0 WCAG 2.2 AA violations on all five screens in all four colour themes, and on a phone-sized screen.

It is a frontend-only prototype: no backend, no accounts, and the prices are estimates. The code is source-available under the PolyForm Noncommercial License 1.0.0.

make-a-ring.deployxa.online Repository
